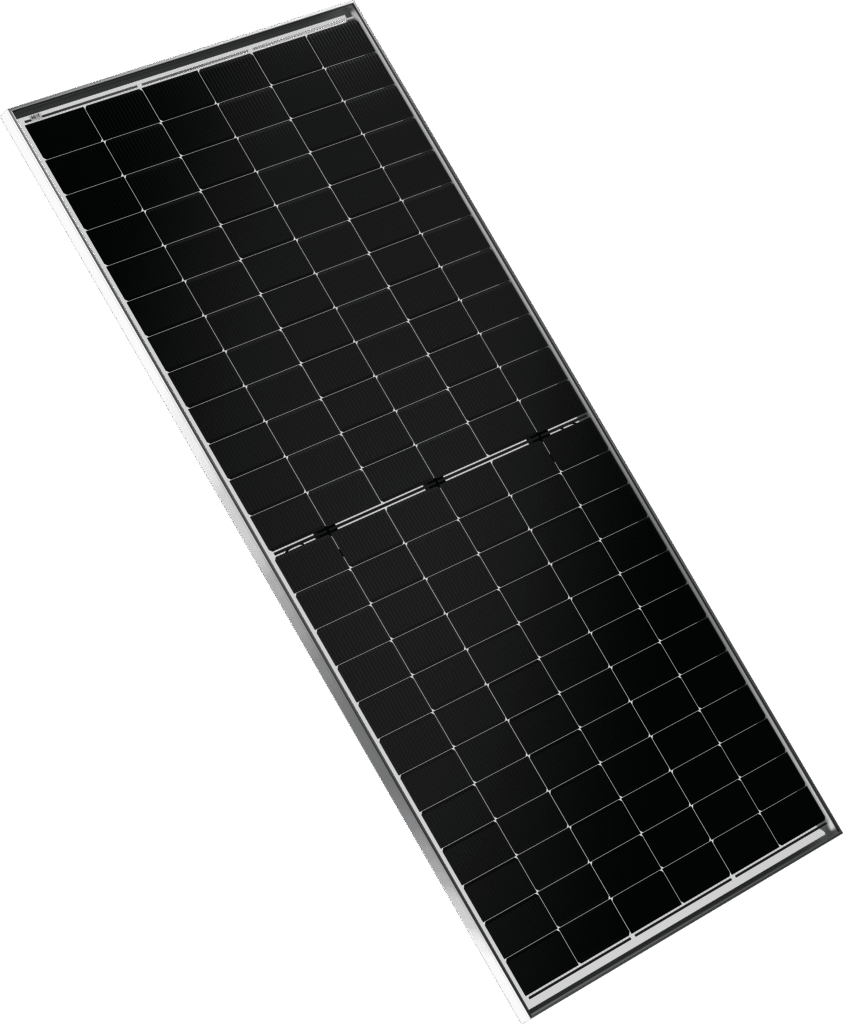

N-TYPE TOPCON 16BB
610 Wp – 630 Wp
BIFACIAL (GLASS to GLASS) | PRODUCT | KEY FEATURES
- Superior Module Efficiency with Bifacial Power Gain
- Anti-Reflective (AR) Coated Glass for Enhanced Power
- Positive Power Tolerance with Current Binning to Minimize Mismatch Losses
- A1 GREEN Solar Modules ensure Long-Term Reliability
15 Years
Product Warranty on Materials and Workmanship 15 Years*
30 Year
Linear Performance
Warranty for 30 Years*
TECHNICAL DATA
ELECTRICAL PERFORMANCE [Power tolerance: 0 ~ +4.99 W, Power measurement uncertainty: ≤ ±3%, Average value of NOCT: 45.08 ± 2 °C]
| ELECTRICAL CHARACTERISTICS* | A1GS16BB132-610 | A1GS16BB132-615 | A1GS16BB132-620 | A1GS16BB132-625 | A1GS16BB132-630 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Nominal Maximum Power (Pmax) | 610 W | 457 W | 615 W | 461 W | 620 W | 465 W | 625 W | 468 W | 630 W | 476 W |
| Optimum Operating Voltage (Vmp) | 40.95 V | 38.45 V | 41.18 V | 38.67 V | 41.37 V | 38.85 V | 41.52 V | 38.99 V | 41.52 V | 38.88 V |
| Optimum Operating Current (Imp) | 14.95 A | 11.90 A | 14.95 A | 11.93 A | 15.00 A | 11.97 A | 15.06 A | 12.02 A | 15.10 A | 12.17 A |
| Open Circuit Voltage (Voc) | 48.54 V | 45.77 V | 48.68 V | 45.91 V | 48.92 V | 46.13 V | 49.18 V | 46.38 V | 49.50 V | 47.03 V |
| Short Circuit Current (Isc) | 15.66 A | 12.62 A | 15.669 A | 12.65 A | 15.72 A | 12.67 A | 15.73 A | 12.68 A | 16.12 A | 12.99 A |
| Module Efficiency | 22.60% | 22.79% | 22.97% | 23.16% | 23.32% | |||||
| BIFACIAL OUTPUT – BACKSIDE POWER GAIN @ STC* (Bifaciality Factor: 80% ± 05%) | |||||
|---|---|---|---|---|---|
| 5% | Nominal Maximum Power (Pmax) | 640 W | 645 W | 651 W | 656 W |
| Module Short Circuit Current / Efficiency | 16.44 A / 23.73% | 16.48 A / 23.93% | 16.50 A / 24.12% | 16.52 A / 24.32% | |
| 10% | Nominal Maximum Power (Pmax) | 671 W | 676 W | 682 W | 687 W |
| Module Short Circuit Current / Efficiency | 17.23 A / 24.86% | 17.26 A / 25.07% | 17.29 A / 25.27% | 17.30 A / 25.47% | |
| 25% | Nominal Maximum Power (Pmax) | 762 W | 768 W | 775 W | 781 W |
| Module Short Circuit Current / Efficiency | 19.58 A / 28.25% | 19.62 A / 28.48% | 19.65 A / 28.72% | 19.66 A / 28.95% | |

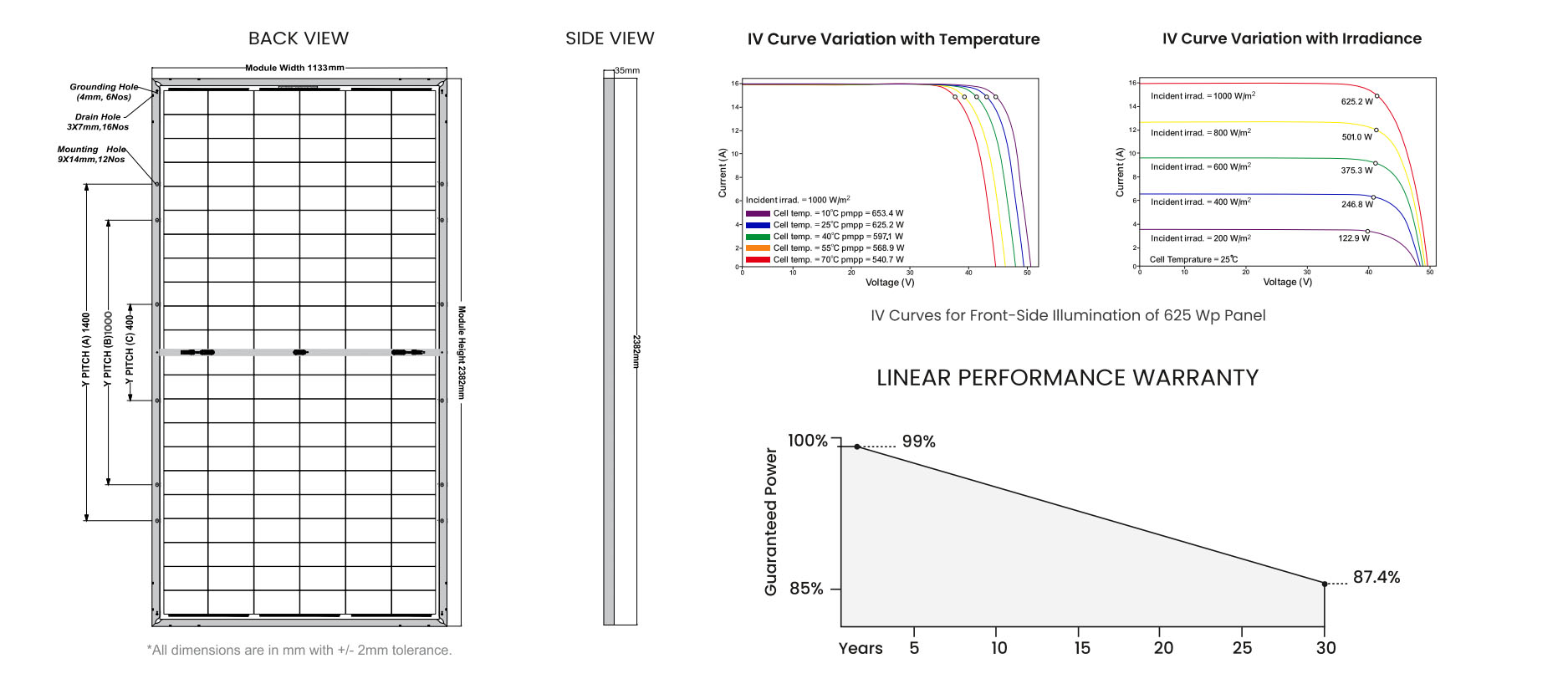

MECHANICAL SPECIFICATIONS
| Dimensions | 2382(L) × 1133(W) × 35(T) in mm |
| Weight (kg) | 34.5 |
| Cell type / No of Cell | 132 Half-cut N-type TOPCon Bifacial Solar cells |
| Frame | Anodized Aluminium Alloy (6005, Temper T6, Silver colour) |
| Front Cover | Low Iron semi-Tempered AR coated Glass (2 mm thick) |
| Encapsulate | PID resistant and UV resistant Polymeric Film |
| Back Cover | Low Iron semi-Tempered Glass (2 mm thick) |
| Junction Box | 35A Split Junction Box (3 nos. with individual Bypass Diode) – IP68 |
| Bypass Diode | 45 V, 200 ℃ max junction temperature |
| Cable | 4 sq. mm, 300 mm (customisable) |
| Connectors | MC4 compatible |
| Application Class | Class A |
| Safety Class | Class II |
| Mechanical Load | 5400 Pa Front / 2400 Pa Back |
| Mounting Holes (Y) | [A]1400 [B]1000 [C]400 |
| Mounting Holes (X) | 1095 |
MAXIMUM OPERATING CONDITIONS
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500 V |
| Maximum Series Fuse | 35 A |
TEMPERATURE COEFFICIENTS
| Current (Isc) | 0.0350% / ℃ |
| Voltage (Voc) | -0.2277% / ℃ |
| Power (Pmax) | -0.2827% / ℃ |
STACKING STANDARD 20FT 40FT
| No. of Modules | 279 | 620 |
| No. of Pallets | 09 | 20 |
| Modules / Pallet | 31 Nos / 1130 Kg | |
| Pallet Dimensions | 2420 × 1130 × 1275 mm | |
Caution: Read safety & installation instructions before use.
Warranty: 30-year linear performance warranty (1% first year, 0.4%/year thereafter).
Disclaimer: Specifications subject to change without notice.
